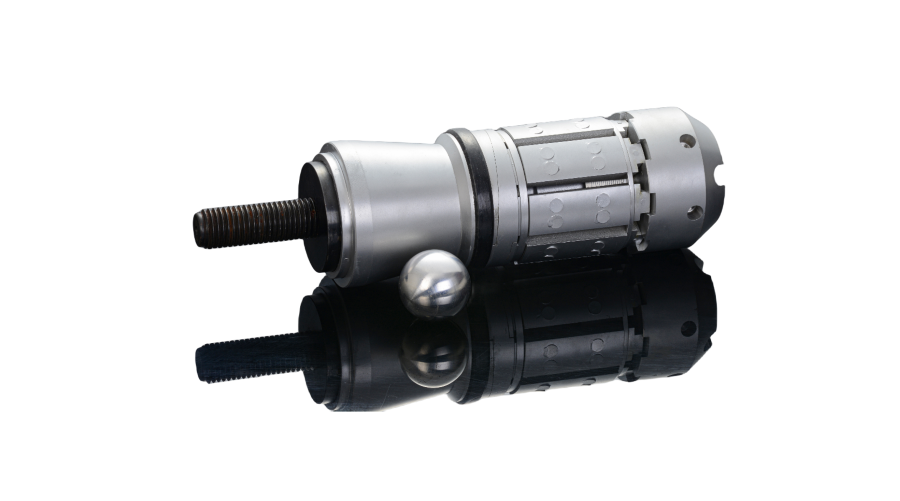

The outer diameter of the guide shoe is 103mm. 8 slots are designed to install the slips into the slots to prevent the slips from rotating.
The slip collar is 6mm wide and 3mm thick, preventing damage during running.
The 8 slips adopt rivet process. Riveting the slips and guide shoes together by soluble pins can prevent loosing and sliding.
The outer diameter of the slip is designed to be 100 mm, 3mm smaller than the cone and guide shoe to prevent bumping in the well.
The outer diameter of the vertebral body is 103mm.
The outer diameter of the expansion ring is 101mm, 2mm smaller than the cone to prevent being knocked in the well.
